The Clipsal Solis™ Collection brings your projects to the next level with its blend of modern minimalism and advanced features. Perfect for high-end builds, this range redefines luxury and performance.

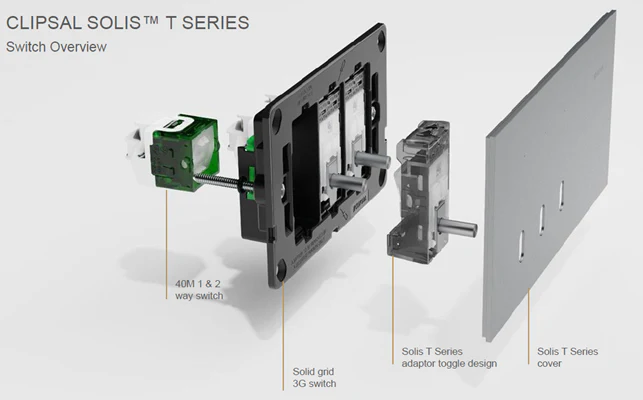

The T Series range is available in four premium finishes: Platinum Aluminium, Ebony Aluminium, Living Brass and White Ceramic. It has a distinctive and robust toggle with an ultra slim cover (3.9mm) for efficient installation.

1042TA-WC Clipsal Solis 2 Gang Toggle Complete Switch White Ceramic

This product can be installed into standard wall brackets.

Unsure which bracket is required? Solis mounting compatibility chart can be found here.

• Number of gangs 2 gangs

• [Ue] rated operational voltage 230/240 V

• Network type AC

• Network frequency 50 Hz

• Rated current 20 A/16 AX

• Control type Toggle switch

• Connections - terminals Screw terminals

• Installation Type Flush

• Number Of Switches 2

• Material Ceramic

• Installation direction Horizontal

• Surface treatment Polished

• Load type LEDi lamp 0...250 W 20 A/16 AX

• Terminals Capacity 4 x 1.5...3 x 2.5 mm²

• Screwdriver shape Philips No 2

• Square drive no 1 (SQ1)

• Wire stripping length 10 mm

• Mounting Type Screw

• Cover Thickness 3.6 mm

• Mounting centres 84 mm

• Cut-out dimensions 93 x 50 mm

• Product certifications RCM

• Surface finish Polished

• Height 74 mm

• Width 148 mm

• Depth 56 mm

• Embedding depth 41 mm

• Motor M-rating AS3133 M80

• Switch function 1-pole 1/2-way

If you are unsure what to order, then we are happy to help. Please call us during business hours.

Clipsal Solis is backed by a 10 year mechanical and a 7 year electronic warranty.
